Overview

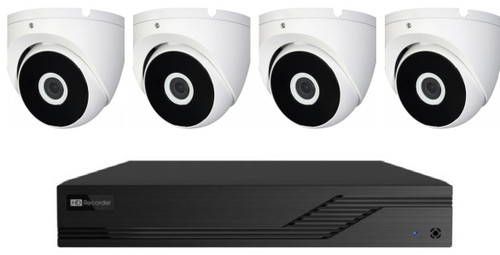

ED8004H5-BN2 series are 4 CH 5Mp Lite high definition DVRs with ability to connect analog and IP cameras simultaneously, which adopt the standard H.265 high profile compression format and the most advanced SOC technique to ensure real time recording in each channel and realize outstanding robustness of the system. ED8004H5-BN2 support 4 CH video input, 1 /1 CH audio input, simultaneous 4 CH playback. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc. The storage capacity is 1 x SATA up to 10TB and is NDAA Compliant DVR.

HCC3320M-IR/28-V2 is a 2MP TVI/CVI/CVBS/AHD switchable IR IP67 outdoor DWDR turret camera with 2.8mm fixed lens.

 Features

DVR - ED8004H5-BN2

• 4CH TVI / AHD video input, support 5MP / 4MP / 3MP / 1080P / 720P / WD1 recording

• 4CH CVI video input, support 4MP / 3MP / 1080P / 720P / WD1 recording

• 4CH DVR support 2 CH IPC 5MP / 4MP / 3MP / 1080P / 960P / 720P recording

• Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate

• Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse

• Multi-mode recording: manual / timer / motion

• Playback : 4CH simultaneously playback

• Search: time slice, time, event ( manual, motion ), tag search

• Express and flexible backup via USB, network and so on

• Pentaplex: preview, record, playback, backup and remote access

• DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported

• Remote control via IE or CMS : preview, playback, backup, PTZ and configuration

• Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device

• Multi-user online simultaneously

• Authorization management, log review and device status review

• Support 1080P output, true high resolution display

• Support PTZ preset and auto cruise, up to 255 presets and 8 cruises

• Support NAT function and QR Code scanning by mobile phone and PAD

• Powerful smart phone & Pad surveillance with iOS and Android OS

Camera HCC3320M-IR/28-V2

• 1/2.9″ CMOS

• Max 30fps@1080P

• HD and SD output switchable

• Day/Night(ICR), DWDR, BLC, 2D-DNR

• 2.8mm fixed lens

• Max. IR LEDs length 30m, Smart IR, 12 IR LEDs,

• Close Focus Distance is 800mm (500mm/1900mm) 31.5” (19.7”/74.8”)

• Pan/Tilt/Rotation: Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°

• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

• IP67, DC12V
