Overview

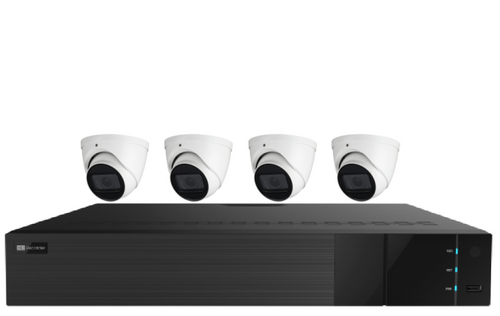

ED8004H5-FN2 is a 4 CH 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1 high definition DVR with ability to connect analog and IP cameras simultaneously, which adopts the standard H.265 high profile compression format and the advanced SOC technique to ensure real time recording in each channel and realize outstanding robustness of the system. ED8004H5-FN2 supports 4CH video input, 4 CH audio input, and simultaneous 4 CH playback. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc. It's NDAA compliant DVR with HDMI, VGA, Alarm in, Alarm out, Audio in, Audio out and BNC Video Out.

 HCC3350T-IR/28 is a 2.8mm Fixed Turret, 1/2.7", 5MP@20FPS, IR(164ft), DWDR and  TVI,CVI,AHD,CVBS switchable camera

Features

DVR ED8004H5-FN2

• 4 CH TVI / AHD/CVI 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1 video input

• 4CH DVR supports 2CH 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1 IP video input by default

• 4CH analog video input can be switched to 4CH IP video input

• Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate

• Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse

• Multi-mode recording: manual / timed / motion / sensor / AI recording

• Playback : 4 CH simultaneously playback

• Search: time slice, time, event, tag and smart search

• Express and flexible backup via USB, network and so on

• Pentaplex: preview, record, playback, backup and remote access

• DHCP, DDNS, PPPoE network protocol

• Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration

• Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device

• Authorization management, log review and device status review

• HDMI 4K output, true high resolution display

• Support PTZ preset and auto cruise, up to 255 presets and 8 cruises

• Support NAT function and QRCode scanning by mobile phones

• Powerful mobile surveillance by smart phones with iOS and Andriod OS

Camera HCC3350T-IR/28

• Max. 20fps@5MP

• TVI/CVI/CVBS/AHD switchable

• 2.8mm fixed lens

• Max. IR length 30m, Smart IR

• IP67 outdoor, indoor

• DC12V

• 2D DNR

• Built in Mic
